Monel Knitted Wire Mesh

Monel Knitted Wire Mesh, Knitted wire mesh EMI/RFI shielding gaskets,compressed knitted wire mesh,nickel knitted wire mesh, monel 400 knitted mesh, knitted wire mesh gaskets

Monel knitted wire mesh/gaskets are produced by special weaving machines, use monel wire as raw material, the finished product is knitted wire mesh tube. Monel knitted wire mesh is most commonly used as economical gaskets for EMI shielding.


WEB WIRE MESH can offer monel knitted wire mesh in the standard specifications, opening sizes range from 1 mm x 1 mm to 6 mm x 6 mm, while wire diameters range from 0.10 mm to 0.28 mm, and the manufactured width is up to 600 mm, although more typically 20 mm to 100 mm. The standard wire material are Monel 400.


Monel 400 is an extremely combination property nickel alloy contains approximately 67% nickel, 28% copper and 5% others, in the hydrofluoric acid and fluoride gas medium with excellent corrosion resistance, it is more resistant to oxidation than higher copper alloys and more resistant to reducing conditions than nickel.


Benefits


Greater strength and toughness

Light weight and durable

High temperature and excellent corrosion resistant

Soft and nonmagnetic


Monel knitted wire mesh materials


Knitted wire mesh is available in three series of different wire materials:


Pure nickel: Nickel 200/201, Nickel 270

Nickel Alloy: Cr20Ni80, Monel 400, Inconel 600

Others available, please ask


Application


Usage of Monel knitted wire mesh includes:


In the EMI & RFI shielding applications, for shielding gaskets, elastomer cores and cable wrap.

In the filtration & separation applications, for the screen of the mist eliminator.

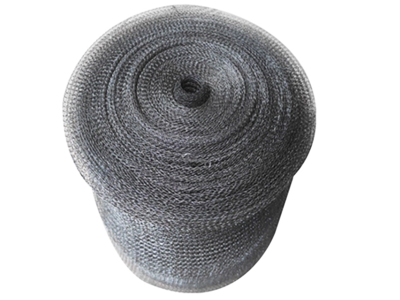

Monel knitted wire mesh rolls


Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)

Roll length 15 m, 30 m, 50 m to 200 m

Other rolls size on request


Weave type

standard knitted type


Technical parameter


Knitted monel wire mesh data sheets


When ordering or requesting a quote for monel knitted wire mesh, please specify:


Number of length 30 m rolls or size required

Width eg. 25.4 mm

Diameter of wire eg. 0.11 mm

Aperture eg. 1 mm x 1 mm

Material eg. Monel 400


Monel® and Inconel® is registered trademark names of International Nickel Co INCO


Standard & Compare


25.4mm Monel Knitted Wire Mesh      50mm Monel Knitted Wire Mesh

25.4mm Monel Knitted Wire Mesh     50mm Monel Knitted Wire Mesh
