Copper Knitted Wire Mesh

Copper knitted wire mesh, brass knitted wire mesh tube, phosphopr bronze knitted wire mesh tape, shielding kintted wire mesh

Copper knitted wire mesh is also known as copper knitted wire industrial cleaning mesh, it is produced in special equipments, use monofilament or multifilament brass / copper wire that are knitted into a tubular form. Copper knitted wire mesh are most commonly used as household products, such as stuffed any small holes to keep rodents out of your house and prevent pests from your garden.


WEB WIRE MESH can offer copper knitted wire mesh in the standard specifications, opening sizes range from 3 mm x 3 mm to 8 mm x 8 mm, while wire diameter ranges from 0.20 mm to 0.28 mm. Depending on the specification, the manufactured widths are between 100 mm and 400 mm. The wire mesh are commonly constructed with pure copper material.


Benefits


Non-flammable

Not rust and corrosion resistance

Tough interlocking loops won't pull apart

High tremendous strength and resiliency

Compliance and low compression set


Copper knitted wire mesh materials


Copper knitted wire mesh is available in three different types of wire materials:


Copper: brass, pure copper, phosphor bronze

Others available, please ask


Application


Usage of copper knitted wire mesh includes:


In the garden applications, for keeps slugs, snails and other small pests out from your house or garden.

In the architecture applications, for stuffing holes of houses, floors to keep unwanted animals away

In the filtration & separation applications, for the screen of the demister pads and range hood screen.

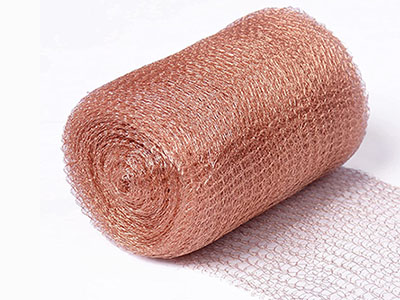

Copper knitted wire mesh rolls


Roll width 100 mm, 125 mm, 150 mm to 400 mm (measured on flat)

Roll length 15 m, 30 m, 50 m to 100m

Other rolls size on request


Weave type

standard knitted type


Technical parameter


Copper knitted wire mesh data sheets


When ordering or requesting a quote for copper knitted wire mesh, please specify:


Number of length 10 m rolls or size required

Width eg. 125 mm

Diameter of wire eg. 0.23 mm

Aperture eg. 3 mm x 5 mm

Material eg. pure copper


Standard & Compare


50mm Width Brass Wire Knitted Mesh      100mm Width Brass Wire Knitted Mesh      100mm Width Copper Wire Knitted Mesh

50mm Width Brass Knitted Mesh         100mm Width Brass Knitted Mesh        100mm Width Copper Knitted Mesh


125mm Width Copper Wire Knitted Mesh

125mm Width Copper Knitted Mesh
