Aluminum Knitted Wire Mesh

Aluminum knitted wire mesh, knit mesh, alu knitted mesh, knitted aluminum wire mesh, flattend knitted mesh, knitted metal mesh, knitted mesh filters, knitted wire mesh washers & disks

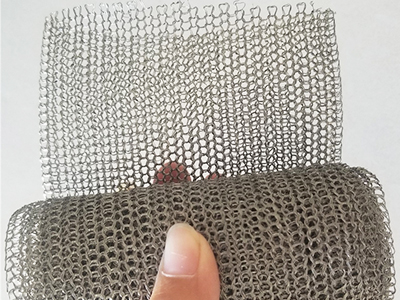

Aluminum knitted wire mesh is produced from monofilament or multifilament aluminum wire by special weaving machines, knitted into a seamless and continuous tubular form. Aluminum knitted wire mesh can be create very high levels of electromagnetic shielding performance, so it is widely used in the EMI & RFI shielding applications.


WEB WIRE MESH can offer aluminum knitted wire mesh in the standard specifications, opening sizes range from 3 mm x 3 mm to 10 mm x 10 mm, while wire diameter ranges from 0.13 mm to 0.30 mm, and the manufactured width is between 100 mm and 500 mm. The standard wire materials are Grade 5056 aluminum alloy.


Benefits


Lightweight and low cost

Good electrical performance

Long Service Life


Aluminum knitted wire mesh materials


Aluminum knitted wire mesh is available in two series of different wire materials:


Pure aluminum series: Grade 1050 (DIN Al99.5), Grade 1060 (DIN Al99.6), Grade 1100 (DIN Al99.0Cu)

Aluminum alloy series: Grade 5052 (DIN AlMg2.5), Grade 5056 (DIN AlMg5), Grade 5083 (DIN AlMg4.5)

Others available, please ask


Application


Usage of aluminum knitted wire mesh includes:


In the EMI & RFI shielding applications, for elastomer cores and cable wrap.

In the aerospace applications, for a part of the aircraft under wing door panel as a seal.

In the filtration & separation applications, for the screen of the demister pads and range hood screen.


Aluminum knitted wire mesh rolls


Roll width 50 mm, 100 mm, 200 mm to 500 mm (measured on flat)

Roll length 15 m, 30 m, 50 m to 100 m

Other rolls size on request


Weave type

standard knitted type


Technical parameter


Aluminum knitted wire mesh data sheets


When ordering or requesting a quote for aluminum knitted wire mesh, please specify:


Number of length 30m rolls or size required

Width eg. 100 mm

Diameter of wire eg. 0.23 mm

Aperture eg. 3 mm x 5 mm

Material eg. Grade 5056 aluminum alloy
