Stainless Steel Knitted Wire Mesh

Stainless steel knitted wire mesh, knitted wire mesh tube, shielding knitted wire mesh, 304 stainless steel knitted mesh tape

Stainless steel knitted wire mesh is produced by special weaving machines, use stainlesss steel wire as raw material, knitting monofilament or multifilament wire into a tubular form. Then the wire mesh be flattened to mesh rolls, and can be also supplied in corrugated (crimped) form. Stainless steel knitted wire mesh are most commonly used in the filtration & separation industries and EMI & RFI shielding industries.


WEB WIRE MESH can offer stainless steel knitted wire mesh in the standard specifications, opening sizes range from 1 mm x 1 mm to 10 mm x 10 mm, while wire diameters range from 0.10 mm to 0.45 mm. Depending on the specification, and the manufactured width is between 3 mm and 600 mm. The standard materials are Grade 304 and Grade 316 stainless steel.


Benefits


Knitted wire mesh construction of interlocking loop,

It has high tremendous strength and resiliency.

Compliance and low compression set


Stainless steel knitted wire mesh materials


Stainless steel knitted wire mesh is available in three series of different wire materials:


200 series: Grade 201 (1.4372), Grade 202 (1.4373)

300 series: Grade 304 (1.4301), Grade 316 (1.4401), Grade 321 (1.4541)

400 series: Grade 410 (1.4006), Grade 420 (1.4021 ), Grade 430 (1.4016)

Others available, please ask


Application


Usage of stainless steel knitted wire mesh includes:


In the architectural & decorative industries, for the screen of garden.

In the EMI & RFI shielding industries, for elastomer cores and cable wrap.

In the filtration & separation industries, for the screen of the demister pads, coalescers (Reactor Internals) and range hood screen.

In the automobile industries, for airbags, anti vibration and mufflers & silencers.

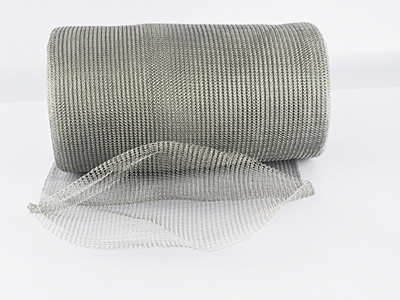

Stainless steel knitted wire mesh rolls


Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)

Roll length 15 m, 30 m, 50 m to 200m

Other rolls size on request


Weave type

standard knitted type      high efficient type      high penetrated type


Technical parameter


Stainless steel knitted wire mesh data sheets


When ordering or requesting a quote for stainless steel knitted wire mesh, please specify:


Number of length 30 m rolls or size required

Width eg. 100 mm

Diameter of wire eg. 0.23 mm

Aperture eg. 3 mm x 5 mm

Material eg. Grade 304


Standard & Compare


15mm width knitted wire mesh      18mm width knitted wire mesh      20mm width knitted wire mesh

15mm width knitted wire mesh           18mm width knitted wire mesh           20mm width knitted wire mesh


30mm width knitted wire mesh      40mm width knitted wire mesh      50mm width knitted double wire mesh

30mm width knitted wire mesh           40mm width knitted wire mesh          50mm width knitted double wire mesh


50mm width knitted 304 wire mesh      60mm width knitted wire mesh      70mm width knitted wire mesh

50mm width knitted 304 wire mesh     60mm width knitted wire mesh           70mm width knitted wire mesh


80mm width knitted 304 wire mesh      100mm width knitted wire mesh      150mm width knitted wire mesh

80mm width knitted 304 wire mesh    100mm width knitted wire mesh         150mm width knitted wire mesh
