Intermediate Crimped Wire Mesh

Intermediate crimped wire mesh, intercrimp wire screen, multiple crimp wire mesh, pre-crimped wire screen sheets, vibrating screen, bbq wire mesh

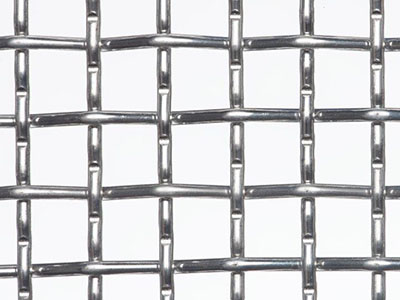

Intermediate crimped wire mesh/screen is also known as intercrimp wire mesh or multiple crimp wire mesh. The wire mesh is manufactured by precision weaving machines, both of the warp wire and weft wire are pre-crimped before the wire mesh is woven. Intercrimped wire mesh are the most widely used in the construction and automobile industries.


Intercrimped weave is a type of pre-crimped weave that both of warp wire and weft wires intersection occur at the points of every odd number (three, five, seven etc.) crimps or corrugations, and the larger opening size with the more number of crimps. The intercrimped weave allows for square and rectangular openings in a variety of sizes, and usually provide larger openings in relation to the lighter wire size.


WEB WIRE MESH can offer intermediate crimped wire mesh in the standard specifications, opening sizes range from 5.0 mm to 100.0 mm, while wire diameters range from 0.6 mm to 5.8 mm, and manufacture width is up to 4 m. The standard materials of intercrimp wire mesh are carbon steel and stainless steel.


Benefits


Large opening up to 100 mm

Intercrimped assure the proper locking of the warp and weft wires

Superior rigidity and greater stability

Strong wear resistance and firm structure


Intermediate crimped wire mesh materials


Intermediate crimped wire mesh is available in five different series of wire materials:

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201,202, 304, 316, 321, 410, 430

Copper: brass, pure copper, phosphor bronze

Aluminum: 1050, 1060, 1100, 5052, 5056

Nickel: pure nickel, nickel alloy, monel

Other available, please ask


Application


Usage of intermediate crimped wire mesh includes:


In the architectural & decorative industries, for the screen of window, fireplace, fence and ceiling.

In the agricultural & food industries, for barbecue grills.

In the mining & aggregate industries, for the screens of vibrating machine.

In the automobile industries, for radiator grills and headlight covers.

In the petrochemical & chemical industries, for test sieve.


Intermediate crimped wire mesh rolls


Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

Other rolls size on request


Intermediate crimped wire mesh panels


Panel width: 0.5 m, 0.914 m, 1 m, 1.22 m to 2 m

Panel length: 1 m, 1.22 m, 1.5 m to 6 m

Other sheets size on request


Crimp styles

single_intermediate_crimped.jpg     double_intermediate_crimped.jpg


Technical parameter


Intermediate crimped wire mesh data sheets


When ordering or requesting a quote for intercrimped wire screen, please specify:


Number of length 30 m for 1 m wide rolls or size required

Crimp style eg. Single Inter crimp weave

Aperture eg. 12.7 mm

Diameter of wire eg. 2.0 mm

Material eg. Grade 304


Standard & Compare


7.5mm Intercrimped Wire Mesh      8mm Intercrimped Wire Mesh      20mm Intercrimped Wire Mesh

7.5mm Intercrimped Wire Mesh         8mm Intercrimped Wire Mesh           20mm Intercrimped Wire Mesh


25mm Intercrimped Wire Mesh      38mm Intercrimped Wire Mesh

25mm Intercrimped Wire Mesh         38mm Intercrimped Wire Mesh
