Stainless steel wire mesh/fabric is produced in twilled dutch weave, this kind of woven mesh is light tight woven mesh, it is finer filtration than plain dutch weave. twilled dutch weave wire mesh are the most widely wire mesh used in the heavy duty filtration industries.

For twilled dutch weave wire mesh,warp wires of larger diameters are interwoven with a wider pitch than weft wire, the warp wire passes over two and under two weft wires, as in normal twilled weave, producing a very strong and firm cloth.

WEB WIRE MESH can offer twilled dutch weave wire mesh in various specifications, the apertures range from 3 µm to 101 µm, and wire mesh roll widths are between 0.1 m and 1.5 m. The standard materials are grade 304, grade 316 and grade 316L stainless steel.

Benefits

High pressure filtration

Very low absolute accuracy > 3 µm

Tight mesh and high resistance

Very strong and firm cloth

High level of flow and minimal pressure drop

Twilled dutch weave stainless steel wire mesh materials

Twilled dutch weave wire mesh is available in three different series of wire materials:

Stainless steel 200 series: Grade 201, Grade 202

Stainless steel T 300 series: Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Stainless steel 400 series: Grade 410, Grade 420, Grade 430

For a comparison of chemical and mechanical properties of stainless steel, see our stainless steel grade comparison chart(PDF).

Application

Usage of twilled dutch weave stainless steel wire mesh includes:

In the filtration industries, for filter discs and cartridge filters, such as plastic extrusion screens and sand control screen.

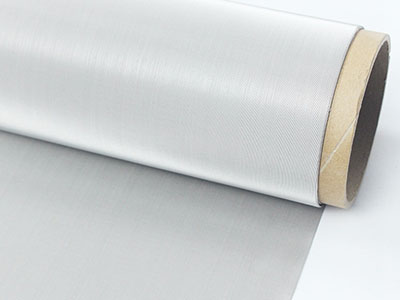

Twilled dutch mesh rolls

Roll length: standard size is 30m in length. And also can cut to requested size as customers’ requirement

Width 1 m can cut to 0.1 m and 0.15m for 10 m long rolls

Other rolls size on request

Twilled dutch weave

Technical parameter

Twilled dutch weave wire mesh data sheets(PDF)

When ordering or requesting a quote for twilled dutch weave wire mesh, please specify:

Number of length 30 m for 1 m wide rolls or size required

Mesh eg. 325 x 2300 mesh

Diameter of wire eg. 0.036 x 0.024 mm

Aperture eg. 4 µm

Material eg. Grade 316L
