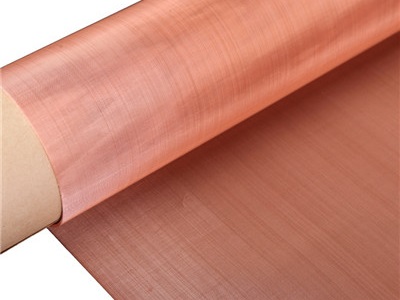

Pure Copper Wire Mesh

Red copper wire mesh, pure copper wire cloth, plain weave copper wire mesh, square weave wire mesh

Copper wire mesh (also known as copper wire cloth) is produced in plain weave, it is a kind of soft, malleable and ductile metal mesh, and has high thermal and electrical conductivity. (Depending on) the features, copper wire mesh are the commonly use wire mesh in the EMI and RFI shielding industries.



WEB WIRE MESH can offer copper wire mesh in the standard specifications, apertures range from 0.081 mm to 4 mm, while wire diameters range from 0.06 mm to 0.7 mm. And the manufactured widths are between 0.914 m and 1.22 m. The standard materials are 99.95% or 99.99% pure copper wire.



Benefits



Excellent electrical conductivity

Copper wire mesh has a red color, unique and beautiful

With large Inventory



Copper wire mesh materials



Copper wire mesh is comprised of pure copper, it is available in three different wire materials:



C11000 (99.9%) pure copper wire

C10200 (99.95%) pure copper wire

C10100 (99.99%) pure copper wire



Application



Usage of copper wire mesh includes:



In the architectural & decorative industries, for the screen of window, door, fireplace and interior wall.

In the EMI & RFI shielding industries, for copper screen shielded room, enclosure box, faraday cage and laboratory shielded testing.

In the filtration and separation industries, for test sieve and filter discs.

In the petrochemical & chemical industries, for cylinder mold of paper making.

In battery industries, as an current collectors part of fuel cells.



Copper wire mesh rolls



Roll length: standard size is 30 m in length. And also can cut to requested size as customers’ requirement.

Roll width 0.914 m, 1 m, 1.22 m, 1.5 m to 2 m

Other rolls size on request



Weave type

plain weave


Technical parameter


Copper wire mesh data sheets


When ordering or requesting a quote for copper wire mesh, please specify:



Number of length 30 m for 1 m wide rolls or size required

Mesh eg. 80 mesh

Diameter of wire eg. 0.12 mm

Aperture eg. 0.20 mm

Material eg. Grade C10200 (99.95%) pure copper



Standard & Compare


16 mesh copper wire mesh       22 mesh copper wire mesh      80 mesh copper wire mesh

16 mesh copper wire mesh                 22 mesh copper wire mesh                  80 mesh copper wire mesh
