Plain Weave Stainless Steel Wire Mesh

Plain weave stainless steel wire mesh,stainless steel wire cloth, square weave wire mesh,mill grade woven wire mesh,tensile bolting cloth,market grade wire mesh,304 stainless steel wire mesh

Plain weave stainless steel wire mesh/cloth is kind of square weave wire mesh, it is the most widely wire mesh used in the industries. The wire mesh is manufactured by weaving machines, after 13 whole weaving process, the mesh surface flatness would be better.


For plain weave wire mesh,wire diameters of warp and weft wire are of equal size, and each warp wire passes alternately over and under each weft wire running horizontally through the cloth at 90 degree angles.


WEB WIRE MESH can offer plain weave wire mesh in the standard specifications, the openings sizes range from 0.044 mm to 7.8 mm, while wire diameters range from 0.04 mm to 1.6 mm, and manufacture width is up to 8 m. The wire mesh is commonly constructed with materials of grade 304 (1.4301) and grade 316 (1.4401) stainless steel.


Benefits


Stainless steel wire mesh has excellent corrosion resistance

Square hole and accurate mesh size

Wire diameter and mesh with ratio reasonable

Wear-resistant and firm in structure

High opening rate and low pressure loss

Non magnetic in the annealed condition

Good air permeability, high flow rate

With an abundant stock


Plain weave stainless steel wire mesh materials


Plain weave wire mesh is available in three different series of wire materials:


Austenitic stainless steel 200 and 300 series: Grade 201 (1.4372), Grade 202 (1.4373), Grade 304 (1.4301), Grade 304L (1.4306), Grade 316 (1.4401), Grade 316L (1.4404), Grade 321 (1.4541)

Ferritic stainless steel: Grade 430 (1.4016)

Martensitic stainless steel: Grade 410 (1.4006), Grade 420 (1.4021 )


For a comparison of chemical and mechanical properties of stainless steel, please see our stainless steel grade comparison chart.(PDF)


Application


Usage of plain weave stainless steel wire mesh includes:


In the architectural & decorative industries, for the screen of window, door, fireplace and ceiling.

In the EMI & RFI shielding industries, for shielded room and faraday cage.

In the water, oil & gas industries, for the raw material of filter element.

In the petrochemical & chemical industries, for test sieve and structured packing.

In battery industries, as an electrode substrates or current collectors part of fuel cells.

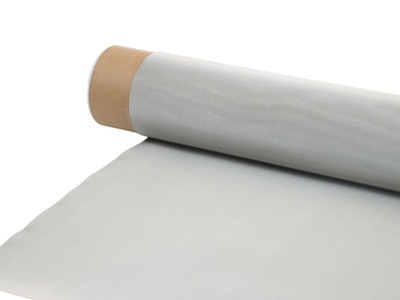

Plain weave stainless steel wire mesh rolls


Roll length: standard size is 30 m in length. And also can cut to requested size as customers’ requirement.

Roll width: 0.914 m, 1 m, 1.22 m, 1.5 m to 8 m

Other rolls size on request


Plain weave

plain weave


Technical parameter


Plain weave wire mesh data sheets


When ordering or requesting a quote for plain weave wire mesh, please specify:


Number of length 30 m for 1 m wide rolls or size required

Mesh eg. 100 mesh

Diameter of wire eg. 0.1 mm

Aperture eg. 0.15 mm

Material eg. Grade 304 (1.4301)
