Plain Crimped Wire Mesh

Plain crimped wire mesh, square or rectangular hole wire screen, pre-crimped wire mesh sheets, vibrating screen panels

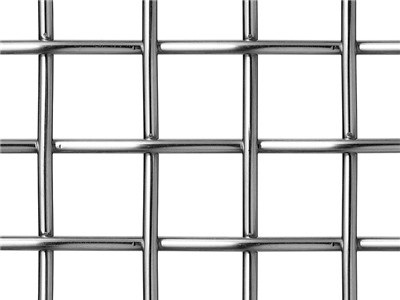

Plain crimped wire mesh/screen is produced in plain crimped weave, opening is square or rectangular hole. The wire mesh is manufactured by weaving machines, both of the warp wire and weft wire are mildly crimped by weaving process before the wire mesh is woven. The plain pre-crimped wire mesh are widely used in the industries.


Plain crimped weave is the most commonly type of pre-crimped weave, it is a simple style of crimping in which warp wire and weft wire intersect at every crimps or corrugations. This type of crimped weave is mainly with lighter wires to ensure tension in a light screen.


WEB WIRE MESH can offer plain crimped wire mesh in the standard specifications, opening sizes range from 5.0 mm to 100.0 mm, while wire diameters range from 0.5 mm to 12.7 mm, and the manufactured widths are between 1 m and 4 m. The plain crimped wire mesh is commonly constructed with materials of carbon steel and stainless steel.


Benefits


Pre-crimped wire mesh has high rigidity and strength

More accurate and consistent opening sizes

Strong wear resistance and firm structure


Plain crimped wire mesh materials


Plain crimped wire mesh is available in five series of different wire materials:


Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201,202, 304, 316, 321, 410, 430

Copper: brass, pure copper, phosphor bronze

Aluminum: 1050, 1060, 1100, 5052, 5056

Nickel: pure nickel, nickel alloy, monel

Other available, please ask


Application


Usage of plain crimped wire mesh includes:


In the architectural & decorative industries, for the screen of cupboard, fireplace, fence and ceiling.

In the agricultural & food industries, for barbecue grills and pig raising screens.

In the mining & aggregate industries, for vibrating machine

In the automobile industries, for car grilles.

In the petrochemical & chemical industries, for test sieve.


Plain crimped wire mesh rolls


Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

Other rolls size on request


Plain crimped wire mesh panels


Panel width: 0.5 m, 0.914 m, 1 m, 1.22 m to 2 m

Panel length: 1 m, 1.22 m, 1.5 m to 6 m

Other sheets size on request


Crimp styles

plain crimped


Technical parameter


Plain crimped wire mesh data sheets


When ordering or requesting a quote for plain pre-crimp screen, please specify:


Number of length 30 m for 1 m wide rolls or size required

Crimp style eg. Plain crimp weave

Aperture eg. 25.4 mm

Diameter of wire eg. 3.2 mm

Material eg. Carbon steel
