H-Type Cable and Rod Combination Mesh

H-Type mesh cable and rod combination mesh (HCR mesh), facade mesh

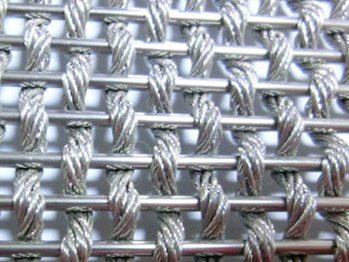

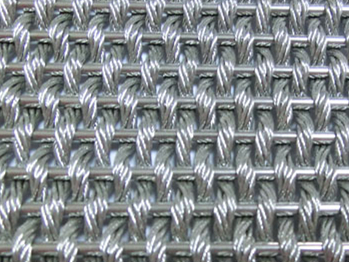

H-Type mesh cable and rod combination mesh (HCR mesh) is produced by special weaving machine with single or multiple cable wire (warp wire ) and straight rod (weft wire), the cable wire create flexibility, while the rod provide stability for the metal mesh. The H-Type mesh cable and rod combination mesh is widely used in large facades and wall cladding installations.


WEB WIRE MESH can offer H-Type cable and rod combination mesh in the standard specifications, the opening sizes range from 2 mm x 1 mm to 100 mm x 10 mm, while cable diameters range from 0.45 mm to 3 mm, and rod diameter is between 0.5 and 4 mm, the manufactured width is up to 8 m. The wire mesh is commonly constructed with materials of stainless steel or phosphor bronze.


Benefits


Strong, durable and flexible construction

Ventilation, light transmission and sound absorption

Certain protection and safe

Elegant, upscale and unique style

Fashion and versatility

Easy to install and low maintenance


H-Type cable and rod combination mesh materials


H-Type cable and rod combination mesh is in two different series of wire materials:

Stainless steel: 201,202, 304, 316, 321, 410, 430

Copper: brass, pure copper, phosphor bronze

Other available, please ask


Application


Usage of H-Type cable and rod combination mesh includes:


Exterior facades

Fence and gates

Decorative curtains

Terrace and corridors

Staircases isolation screen

Floor covering fabrics

Wall coverings

Sunshades and canopies

Balustrades

Partition screens

Infill panels

Elevator cabins screen

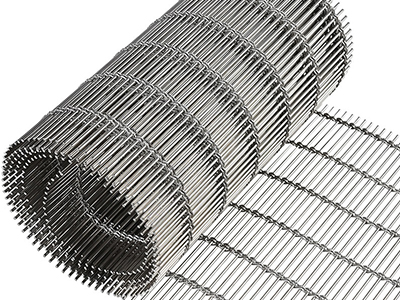

H-Type cable and rod combination mesh rolls


Roll length: standard size is 10 m in length. And also can cut to requested size as customers’ requirement.

Roll width 0.9 m, 1 m, 1.2 m, 1.5 m to 8 m

Other rolls size on request


Weave Type

cable and rod mesh


Technical parameter


H-Type cable and rod combination mesh data sheets


When ordering or requesting a quote for H-Type cable and rod combination mesh, please specify:


Number of length 10m with 1 m wide rolls or size required

Cable eg. Numbers x Diameter, 3 x 2.0 mm; Pitch, 80 mm

Rod eg. Diameter, 3.0 mm; Pitch 10 mm

Material eg. Grade 304 (1.4301) stainless steel


Standard & Compare


HCR 2x1mm Cable and Rod Mesh      /uploadfile/down/1/PDF/HCR_2x1_H_type_cable_and_rod_copper_mesh.pdf      HCR 1x3mm Cable and Rod Mesh

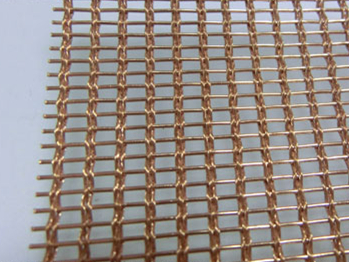

HCR 2x1mm Cable and Rod Mesh      HCR 2x1mm Copper Cable Mesh          HCR 1x3mm Cable and Rod Mesh


HCR 4x4mm Cable and Rod Mesh      HCR 8x8mm Cable and Rod Mesh      HCR 23x2mm Cable and Rod Mesh

HCR 4x4mm Cable and Rod Mesh       HCR 8x8mm Cable and Rod Mesh       HCR 23x2mm Cable and Rod Mesh


HCR 80x10mm Cable and Rod Mesh

HCR 80x10mm Cable and Rod Mesh
