X-Type Cable Mesh

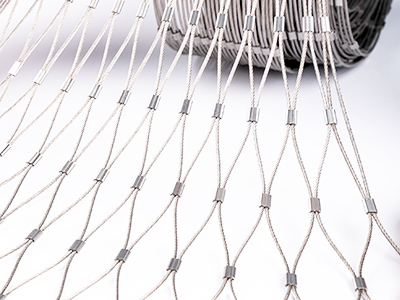

X-Type cable mesh is also known as flexible rope mesh, wire rope ferruled mesh, rhombus mesh, x tend mesh, use stainless steel wire as raw material, produced into 7 x 7 (or 7 x 19) wire rope, then joined with stainless steel ferrules constructed a rhombus mesh

X-Type cable mesh is also known as flexible rope mesh, use stainless steel wire as raw material, produced into 7 x 7 (or 7 x 19) wire rope, then joined with stainless steel ferrules constructed a rhombus mesh. This type rope mesh has excellent impacting-resistant and breaking resistant force, it is widely used in security system applications.


WEB WIRE MESH can offer X-Type cable mesh in the standard specifications, the diamond opening sizes (MW) range from 25 mm to 200 mm, while cable diameters range from 1.0 mm to 4.0 mm, and manufactured width is up to 3 m. The wire rope mesh is commonly constructed with materials of grade 304 (1.4301) and grade 316 (1.4401) stainless steel.


Benefits


Light weight, stable and strong

High security and safety

Allows ample light and airflow

Transparent and flexible

Innovative and durable

For interior and exterior use

Sustainability and recycling


X-Type cable mesh materials


Wire rope mesh is available in three series of different wire materials:


Stainless steel 200 series : Grade 201, Grade 202

Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Stainless steel 400 series : Grade 410, Grade 420, Grade 430


For a comparison of chemical and mechanical properties of stainless steel, see our stainless steel grade comparison chart.(PDF)


Application


Usage of flexible rope mesh includes:


In LED applications, as support part

In zoo applications, for security screen of animal cages and enclosures

In architecture applications, for green wall, parking, bridges, staircases, facades and ceilings.


X-Type cable mesh rolls


Length 10 m rolls for 1 m wide rolls

Roll width 0.2 m, 0.6 m, 1 m, 1.5 m to 3 m

Roll length 1 m, 2 m to 30 m

Other rolls size on request


Weave Type

x type cable mesh


When ordering or requesting a quote for cable mesh, please specify:


Number of length 10 m for 1 m wide rolls or size required

Diameter of cable eg. 2 mm

Openng Size eg. MW 80 mm, MH 139 mm, 60°angles

Material eg. Grade 304 (1.4301)


Standard & Compare


25 mm opening cable mesh fence pdf      40 mm opening flexible rope mesh pdf      60 mm opening cable mesh pdf
