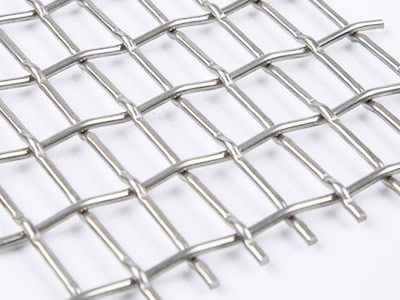

Slot Hole Crimped Wire Mesh

Slot hole crimped wire mesh, pre-crimped wire screen panels, vibrating screen sheets

Slot hole crimped wire mesh/screen is produced on looms as screen panels, it is a special style hat the warp wire and weft wire are pre crimped by different weaving process before weaving, that create a rectangular hole and ensure maximum open areas. Crimped wire mesh are most widely used in the agricultural and construction industries.


WEB WIRE MESH can offer slot hole crimped wire mesh in the standard specifications, opening sizes range from 1.0 x 4.0 mm to 10.0 x 50.0 mm, while wire diameters range from 0.8 mm to 5.0 mm, and the manufactured widths are between 1 m and 4 m. The wire screens is commonly constructed with materials of carbon steel and stainless steel.


Benefits


Openings is rectangular hole

Economical manufacturing, accurate opening size

Large opening area, avoid binding or clogging

Strong wear resistance and firm structure


Slot hole crimped wire mesh materials


Slot hole crimped wire mesh is available in five series of different wire materials:


Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201,202, 304, 316, 321, 410, 430

Copper: brass, pure copper, phosphor bronze

Aluminum: 1050, 1060, 1100, 5052, 5056

Nickel: pure nickel, nickel alloy, monel

Other available, please ask


Application


Usage of slot hole crimped wire mesh includes:


In the architectural & decorative industries, for the screen of facade and fence.

In the agricultural & food industries, for pig raising screens.

In the mining & aggregate industries, for the screens of vibrating machine.


Slot hole crimped wire mesh rolls


Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

Other rolls size on request


Slot hole crimped wire mesh panels


Panel width: 0.5 m, 0.914 m, 1 m, 1.22 m to 4 m

Panel length: 1 m, 1.22 m, 1.5 m to 6 m

Other sheets size on request


Crimp styles

slot hole crimped


Technical parameter


Slot hole crimped wire mesh data sheets


When ordering or requesting a quote for slot hole crimped wire screen, please specify:


Number of length 30 m for 1 m wide rolls or size required

Crimp style eg. Slot hole crimp weave

Opening eg. Rectangular hole 2.0 x 6.0 mm

Diameter of wire eg. 1.2 mm

Material eg. Grade 304


Standard & Compare


5x15mm Slot Hole Crimped Mesh      10x20 Slot Hole Crimped Mesh

5x15mm Slot Hole Crimped Mesh        10x20 Slot Hole Crimped Mesh
