Flat Top Crimped Wire Mesh

Flat top crimped wire mesh, smooth top wire screen, previously crimped wire screen panels, vibrating screen mesh sheets

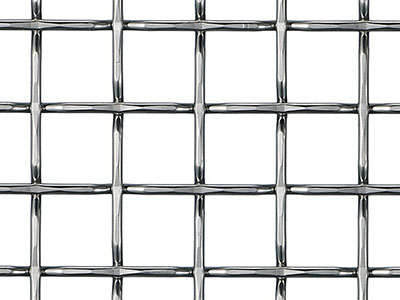

Flat top crimped wire mesh is also know as smooth top wire screen. The wire mesh is produced on looms as screen panels, both of the warp wire and weft wire are previously crimped before weaving. Flat top crimped wire mesh is commonly used in the architectural and mining industries.

The flat top crimped weave is a improved crimp style, its wire is same to lock crimped weave, the difference is all of its crimps or corrugations is offset to the bottom side of screen, producing a smooth and flat top surface, there is no projections on top to avoid wearing.

WEB WIRE MESH can offer flat top crimped wire mesh in the standard specifications, opening sizes range from 4 mm to 60 mm, while wire diameters range from 1.6 mm to 5.0 mm, and manufacture width is up to 4 m. The standard materials of flat top crimped wire mesh are carbon steel and stainless steel.


Flat surface reduced friction

Accurate openings increase screening efficiency

High rigidity and strength

Strong wear resistance and firm structure

Flat top crimped wire mesh materials

Flat top crimped wire mesh is available in five series of different wire materials:

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201,202, 304, 316, 321, 410, 430

Copper: brass, pure copper, phosphor bronze

Aluminum: 1050, 1060, 1100, 5052, 5056

Nickel: pure nickel, nickel alloy, monel

Other available, please ask


Usage of flat top crimped wire mesh includes:

In the architectural & decorative industries, for the screen of fence, facade and ceiling.

In the agricultural & food industries, for pig raising screens.

In the mining & aggregate industries,vibrating machine.

Flat top crimped wire mesh rolls

Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

Other rolls size on request

Flat top crimped wire mesh panels

Panel width: 0.5 m, 0.914 m, 1 m, 1.22 m to 2 m

Panel length: 1 m, 1.22 m, 1.5 m to 6 m

Other sheets size on request

Crimp styles

flat top crimped

Technical parameter

Flat top crimped wire mesh data sheets

When ordering or requesting a quote for flat top crimped wire screen, please specify:

Number of length 30 m for 1 m wide rolls or size required

Crimp style eg. Flat top crimp weave

Aperture eg. 25 mm

Diameter of wire eg. 4 mm

Material eg. Grade 304

Standard & Compare

30mm Flat Top Crimped Wire Mesh      50mm Flat Top Crimped Wire Mesh

30mm Flat Top Crimped Wire Mesh     50mm Flat Top Crimped Wire Mesh
