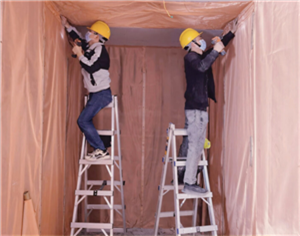

As a premier wire mesh manufacturer in China, Web Wire Mesh provides leading copper wire mesh solutions designed for critical shielding projects. We recently completed a full-scale installation and testing project at a prestigious research institution.

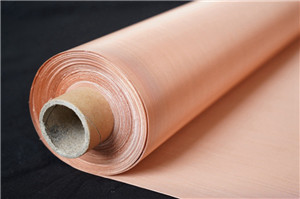

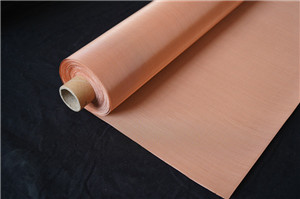

Our copper wire mesh is woven from high purity copper wires, featuring uniform openings and superior conductivity. This makes it the ideal material for laboratories, data centers, and aerospace facilities requiring stringent RF signal attenuation.

Project Technical Specifications & Structure

To achieve optimal shielding effectiveness, the project utilized a modular structural approach.

1. Shielding Layer Configuration

Walls & Ceiling: Constructed using double-layer copper wire mesh to provide redundant protection against a broad frequency spectrum.

Flooring: Reinforced with galvanized steel plates to ensure structural durability and low-frequency magnetic field shielding.

2. Modular Unit Design

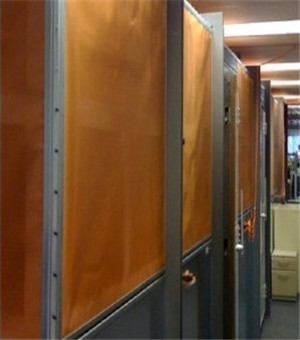

Every shielding component was prefabricated into modular units supported by galvanized metal frames. This modularity allows for:

Precision alignment during assembly.

Enhanced structural integrity using galvanized bolts, nuts, and washers.

Easier maintenance and future scalability.

3. Electromagnetic Sealing & Power Filtering

Shielding Door: Sealed with beryllium bronze spring strips to ensure a continuous conductive path.

Power Entry: All electrical lines for lighting and equipment are routed through specialized EMI filters to prevent interference from leaking through power cables.

Why Choose Web Wire Mesh for Your Shielding Project?

Our solutions are trusted across diverse high-tech sectors, including:

Aerospace & Defense: Protecting sensitive avionics.

Medical Imaging: Ensuring MRI and EEG rooms remain interference-free.

Data Centers: Preventing data breaches via electromagnetic emanation.

Research Labs: Creating quiet environments for precision experiments.
