Twilled Weave Stainless Steel Wire Mesh

Twilled weave stainless steel wire mesh,twilled weave wire cloth,medium wire cloth screens,woven wire test sieve cloth,food grade stainless steel mesh,fine woven wire mesh screen

Twilled weave stainless steel wire mesh/cloth is producing square openings, it can be made from larger diameter wire than plain weave wire mesh. twilled weave is the most commonly wire mesh used in the filtration and separation industries.

For twilled weave,wire diameters of warp and weft are the same size, and each warp wire passes alternately over two and then under two weft wire, and each weft wire passes over/under two warp wire.

WEB WIRE MESH can offer twilled weave wire mesh in standard specifications, apertures range from 0.025 mm to 0.49 mm, while wire diameters range from 0.015 mm to 0.3 mm, and manufacture width is up to 2 m. The wire mesh standard materials are grade 304 and grade 316 stainless steel.


Square hole or rectangular hole

High screening precision

Small opening size > 0.025 mm

Flexible, strength, and durability

Good corrosion-resistance

Low hardness and easy to clean

Twilled weave stainless steel wire mesh materials

Twilled weave wire mesh is available in three different series of wire materials:

Stainless steel 200 series : Grade 201, Grade 202

Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Stainless steel 400 series : Grade 410, Grade 420, Grade 430

For a comparison of chemical and mechanical properties of stainless steel, see our stainless steel grade comparison chart.


Usage of twilled weave stainless steel wire mesh includes:

In the water, oil & gas industries, for the raw material of filter element.

In the petrochemical & chemical industries, for test sieve and structured packing.

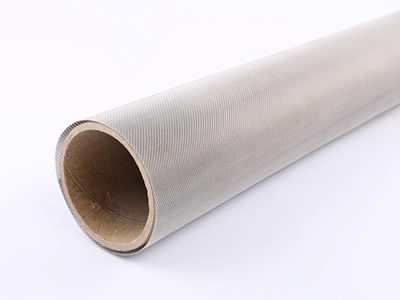

Twilled Weave stainless steel wire mesh rolls

Roll length: standard size is 30 m in length. And also can cut to requested size as customers’ requirement.

Roll width 0.914 m, 1 m, 1.22 m, 1.5 m to 2 m

Other rolls size on request

Twilled weave

twilled weave

Technical parameter

Twilled weave wire mesh data sheet

When ordering or requesting a quote for twilled weave woven wire cloth, please specify:

Number of length 30 m for 1 m wide rolls or size required

Mesh eg. 325 mesh

Diameter of wire eg. 0.035 mm

Aperture eg. 0.043 mm

Material eg. Grade 316 (1.4401)
